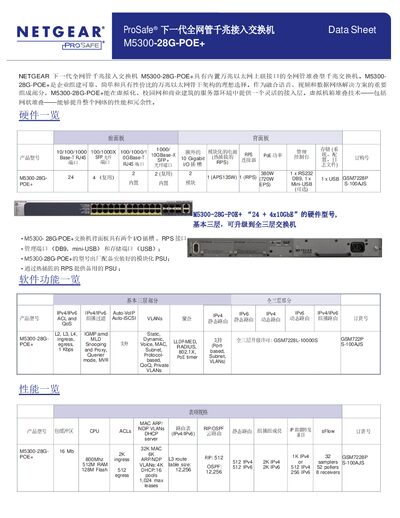

Data sheet for the Netgear M5300-28G-POE+ managed gigabit switch with 24+4 ports, PoE+, stacking and advanced routing features.
The Netgear M5300-28G-POE+ is a fully managed gigabit switch designed for enterprise edge networks. It offers 24 10/100/1000Base‑T ports, four 10 GbE uplink ports, and PoE+ support for power‑over‑Ethernet devices.
Key capabilities include virtual chassis stacking for up to eight switches, a 384 Gbps stacking bandwidth, advanced L3 routing, QoS, Auto‑VoIP, and comprehensive security features such as ACLs, 802.1X, and RADIUS/TACACS+ authentication. This manual is written in Chinese.
| RJ45 ports | 24 × 10/100/1000Base‑T |
|---|---|
| 10 GbE ports | 4 (2 × SFP, 2 × SFP+) |
| PoE power budget | 384 W total |
| CPU | Freescale P1010 800 MHz |
| Memory | 512 MB RAM |
| Flash storage | 128 MB |
| Stacking bandwidth | 384 Gbps (8‑unit stack) |
| MAC address table | 32 K entries |
The switch supports up to 384 Gbps stacking bandwidth when eight units are stacked in a dual‑ring topology.
The device uses a Freescale P1010 processor running at 800 MHz.
