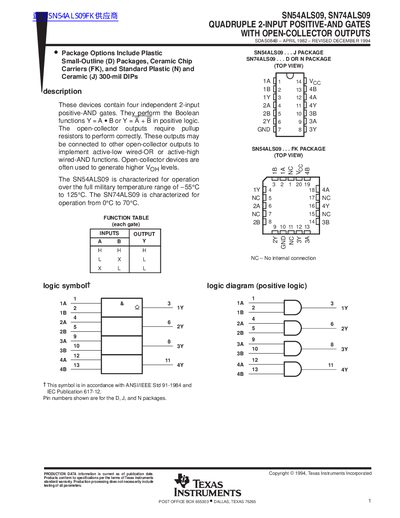

SN54ALS09 and SN74ALS09 are quadruple 2-input positive-AND gates with open-collector outputs. They can be used to perform the Boolean functions Y = A • B or Y = A + B in positive logic. The open-collector outputs require pullup resistors to perform correctly. These outputs may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels. The SN54ALS09 is characterized for operation over the full military temperature range of –55°C to 125°C. The SN74ALS09 is characterized for operation from 0°C to 70°C.
