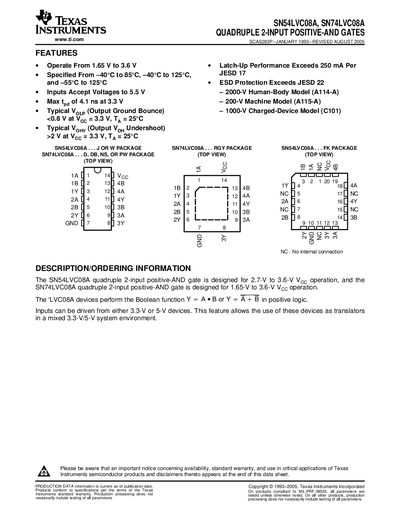

TEXAS INSTRUMENTS SN54LVC08A SN74LVC08A Manual

Update: 29 September, 2023

The document describes the features and characteristics of the SN54LVC08A and SN74LVC08A, which are quad 2-input positive logic AND gates. These devices operate within a voltage range of 1.65V to 3.6V and have a latch-up performance exceeding 250mA. They are specified for temperature ranges of -40°C to 85°C, -40°C to 125°C, and -55°C to 125°C, and have ESD protection exceeding JESD 22 standards. The inputs accept voltages up to 5.5V. These devices can be driven by 3.3V or 5V devices. The document also provides some typical electrical performance parameters and test conditions.

Brand: TEXAS

File format: PDF

Size: 946 KB

MD5 Checksum: 7C7796C35C3346EFB8FE6E70F37BF465

Publication date: 08 May, 2012

Downloads: -

PDF Link: TEXAS INSTRUMENTS SN54LVC08A SN74LVC08A Manual PDF
