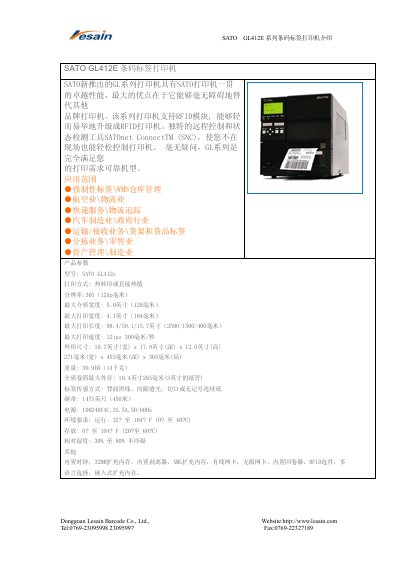

SATO GL412E Barcode Label Printer Product Leaflet
Product Leaflet 1 pages · 100 KB · ZH
The SATO GL412E is a barcode label printer that supports both thermal transfer and direct thermal printing. It can be upgraded with an RFID module and includes the SATOnet ConnectTM (SNC) remote control and status monitoring tool for off‑site management.
Designed for a wide range of applications such as warehouse management, logistics, automotive manufacturing, and retail, the printer provides high speed, multiple media options, and robust environmental tolerance. This manual is written in Chinese.
SATO GL412E specifications
| Printing method | Thermal transfer or direct thermal |
|---|---|
| Resolution | 305 dpi (12 dp/mm) |
| Maximum media width | 5.0 in (128 mm) |
| Maximum print width | 4.1 in (104 mm) |
| Maximum print speed | 12 ips (300 mm/s) |
| Power supply | 100‑240 VAC, 31.5 A, 50/60 Hz |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Weight | 30.9 lb (14 kg) |
All SATO GL412E documents by type
Product Leaflet 1
Other documents 1
Questions answered in these manuals
What printing technologies does the GL412E support?
It supports both thermal transfer and direct thermal printing.
Can the GL412E be upgraded to RFID?
Yes, the printer can be upgraded with an RFID module.
