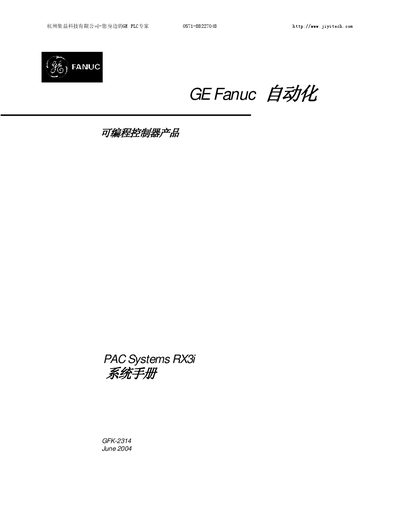

GE Fanuc RX3i System Manual
This manual introduces the GE Fanuc PACSystems RX3i programmable controller, describing its features, performance, and overall system architecture. It serves as a comprehensive guide for engineers and technicians who install, configure, and maintain RX3i systems.
Key sections cover installation procedures, backplane and power‑supply configurations, serial‑bus transmission modules, discrete and analog I/O modules, special modules such as Ethernet and motion control, and extensive appendices with certification, environmental data, and wiring references. This manual is written in Chinese.
GE RX3i specifications
| Power Supply Voltage Options | 24 VDC isolated; 120/240 VAC or 125 VDC 40 W |
|---|---|
| Effective Data Rate | 500 kB/s |
| Maximum Extension Cable Length (Extension Backplane) | 15 m (50 ft) |
Source: GE Fanuc RX3i System Manual
All GE RX3i documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the effective data rate of the RX3i system?
The RX3i system supports an effective data rate of 500 kB per second.
What power‑supply voltage options are available for the RX3i system?
The system can use a 24 VDC isolated power supply or 120/240 VAC (or 125 VDC) supplies rated at 40 W.
What is the maximum length of the I/O extension cable?
The maximum length is 15 m (50 ft) for an extension backplane and 213 m (700 ft) for a remote backplane.
Which modules cannot be used in an RX3i system?
Series 90‑30 modules are not compatible with the RX3i system.
