Key facts
- Brand
- GE
- Model
- Series 90-30
- Category
- Automation control Equipment
- Industry
- Industrial
- Documents
- 3
- Languages
- ZH · EN
- Last added
- 2011-10-14
Start here

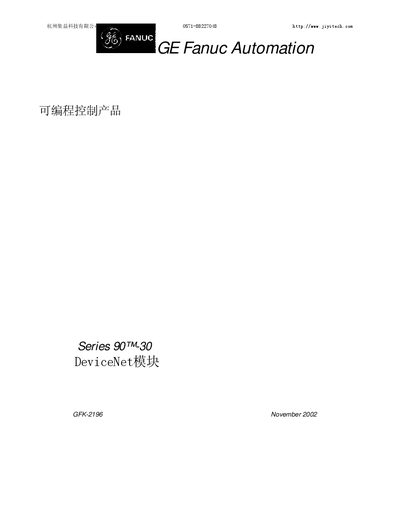

GE Fanuc Series 90-30 DeviceNet Module Manual
This manual provides detailed information on the GE Fanuc Series 90‑30 DeviceNet modules, including the master (IC693DNM200) and slave (IC693DNS201) versions. It explains module functions, wiring, LED indicators, and how they integrate into a DeviceNet network.
The document walks through installation steps, power and grounding requirements, configuration within a Series 90‑30 PLC, communication programming using COMMREQ commands, and the definition of DeviceNet objects. Appendices contain the Electronic Data Sheet (EDS) files for both modules. This manual is written in Chinese.
GE Series 90-30 specifications
| Backplane current consumption | 450 mA @ 5 VDC (typical) |
|---|---|
| Storage temperature range | -40 °C to 85 °C |
| Operating temperature range | 0 °C to 60 °C |
| Supported DeviceNet baud rates | 125 k, 250 k, 500 k |
| Maximum number of devices on master | Up to 63 devices |
| Maximum I/O bytes per slave | 255 bytes input / 255 bytes output |
| Maximum explicit messaging connections per slave | Up to 250 connections |
| DeviceNet status LEDs | Three LEDs indicating module, network, and power status |
All GE Series 90-30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many DeviceNet devices can the master module communicate with?
The master module can communicate with up to 63 DeviceNet devices.
What communication speeds does the module support?
It supports all standard DeviceNet baud rates: 125 k, 250 k, and 500 k.
What is the maximum distance allowed for a remote rack connection?
A remote rack can be connected up to 700 feet (213 meters) from the CPU rack.
From: GE Fanuc Series 90-30 PLC Installation and Hardware Manual
How many slots does a 5‑slot base plate actually have?
A 5‑slot base plate physically contains six slots; the power‑supply slot is not counted among the five usable slots.
From: GE Fanuc Series 90-30 PLC Installation and Hardware Manual
