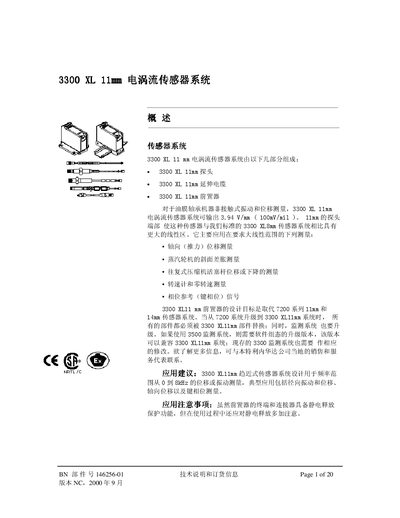

Bentley Nevada 3300 XL 11 mm Eddy Current Sensor System Guide
The 3300 XL 11 mm eddy‑current sensor system consists of a probe, an extension cable and a front‑unit. It provides non‑contact vibration and displacement measurement for oil‑film bearing machines, with a linear range up to 4.5 mm and output sensitivity of 3.94 V/mm.
The manual details mechanical and electrical characteristics, environmental limits, mounting options (panel or rail), ordering codes and optional accessories such as protective connectors and FluidLoc™ cables. This manual is written in Chinese.
Bently Nevada 3300 XL 11mm specifications
| Output sensitivity | 3.94 V/mm (100 mV/mil) |
|---|---|
| Frequency response | 0 to 8 kHz, typical +0 to -3 dB |
| Maximum cable length (pre‑amplifier to monitor) | 305 m (1000 ft) |
| Linear range | 4.0 mm (160 mils) |
| Output impedance | 50 Ω |
| Cable capacitance | 69.9 pF/m |
Source: Bently Nevada 3300 XL 11mm Eddy Current Sensor System Technical Specification
All Bently Nevada 3300 XL 11mm documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the output sensitivity of the 3300 XL 11mm sensor?
The sensor outputs 3.94 V per millimeter (100 mV per mil).
From: Bently Nevada 3300 XL 11mm Eddy Current Sensor System Technical Specification
What is the recommended maximum cable length between the preamplifier and the monitor?
The maximum recommended length is 305 m (1000 ft).
From: Bently Nevada 3300 XL 11mm Eddy Current Sensor System Technical Specification
What is the maximum cable length supported by the 3300 XL system?
The system can be installed with a cable length up to 305 meters (1000 feet).
From: Bentley Nevada 3300 XL 11 mm Eddy Current Sensor System Guide
What sensor gap should be set for the 3300 XL probe?
The recommended gap setting is 2.5 mm (100 mils).
From: Bentley Nevada 3300 XL 11 mm Eddy Current Sensor System Guide
