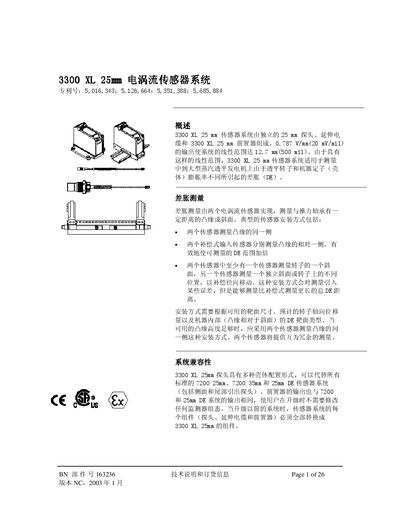

Bently Nevada 3300 XL 25mm Eddy Current Sensor System User Manual
The 3300 XL 25mm sensor system consists of a 25 mm probe, an extension cable and a pre‑amplifier. It provides a linear measurement range of 12.7 mm (500 mil) and is suited for measuring differential expansion in turbine generators.
The manual details probe construction, cable options, mounting accessories, electrical and mechanical specifications, and ordering information, with guidance for calibration and safety compliance. This manual is written in Chinese.
Bently Nevada 3300 XL 25mm specifications
| Output sensitivity | 0.787 YAm (20 mV/mil) |
|---|---|
| Linear range | 12.7 mm (500 mil) |
| Probe operating temperature (continuous) | up to 200 °C |
| Probe operating temperature (intermittent) | up to 250 °C |
| Supply voltage | 17.5 VDC – 26 VDC |
| Load resistance | 10 kΩ |
| Maximum cable length (to monitor) | 305 m (1000 ft) |
| Frequency response | 0 – 2.7 Hz (typical –0 to –3 dB) |
| Minimum target diameter | 61 mm (2.4 in) |
Source: Bently Nevada 3300 XL 25mm Eddy Current Sensor System User Manual
