EXTECH Flexible True RMS AC Current Clamp 382400 user manual

Update: 28 September, 2023

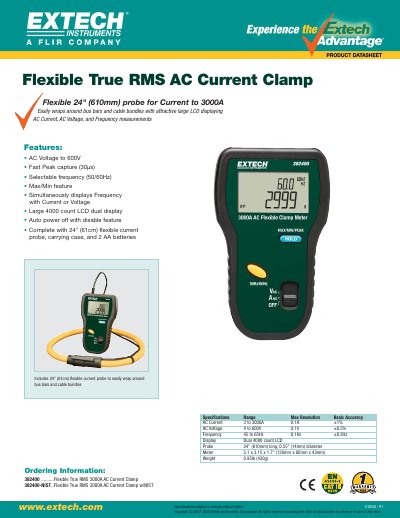

This document describes the features and characteristics of the flexible true RMS 3000A AC current clamp model 382400 produced by Extech Instruments Corporation. It includes a 24-inch flexible current probe that can easily wrap around bus bars and cable bundles. The product features AC voltage measurement up to 600V, fast peak capture (30μs), selectable frequency (50/60Hz), max/min feature, and simultaneous display of frequency with current or voltage. It also has a large 4000 count LCD dual display, auto power off with disable feature, and comes complete with a 24-inch flexible current probe, carrying case, and 2 AA batteries. The specifications of the product include AC current range of 3 to 3000A, AC voltage range of 4 to 600V, and frequency range of 45 to 65Hz. The product dimensions are 5.1 x 3.15 x 1.7 inches and it weighs 0.95 pounds.

Brand: EXTECH

File format: PDF

Size: 234 KB

MD5 Checksum: 58C021146765AF4CA99FB8619A32A651

Publication date: 01 August, 2012

Downloads: -

PDF Link: EXTECH Flexible True RMS AC Current Clamp 382400 user manual PDF

Download
