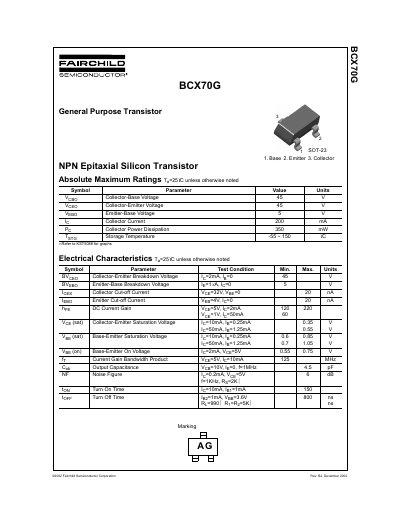

FAIRCHILD BCX70G NPN Epitaxial Silicon Transistor handbook

Update: 30 September, 2023

BCX70G is an NPN silicon transistor produced by Fairchild Semiconductor. Its maximum collector-emitter reverse voltage is 45V, its maximum collector-base reverse voltage is 45V, its maximum emitter-base reverse voltage is 5V, its maximum collector current is 200mA, and its maximum collector power dissipation is 350mW. The storage temperature range is -55°C to 150°C.

Brand: Fairchild

File format: PDF

Size: 76 KB

MD5 Checksum: 8B3CFCFADD3D332C68067949BA662D9A

Publication date: 12 July, 2012

Downloads: -

PDF Link: FAIRCHILD BCX70G NPN Epitaxial Silicon Transistor handbook PDF

Download
