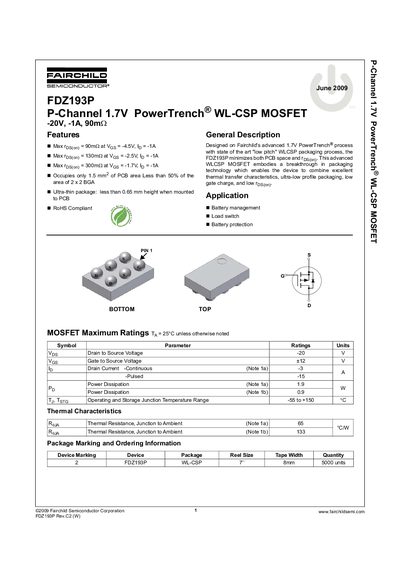

FAIRCHILD FDZ193P handbook

Update: 30 September, 2023

The FDZ193P is a Fairchild P-Channel 1.7V PowerTrench® WL-CSP MOSFET with a maximum RDS(on) of 90 mΩ @VGS=-4.5V, ID=-1A. It occupies only 1.5 mm2 of PCB area and is less than 0.65 mm thick when mounted to a PCB. It is RoHS compliant.


File format: PDF

Size: -

MD5 Checksum: F3E0A9C1D5E41CF1BF4D785B83BBEF65

Publication date: 12 July, 2012

Downloads: -

PDF Link: FAIRCHILD FDZ193P handbook PDF
