MOTOROLA MC74AC00/MC74ACT00 handbook

Update: 29 September, 2023

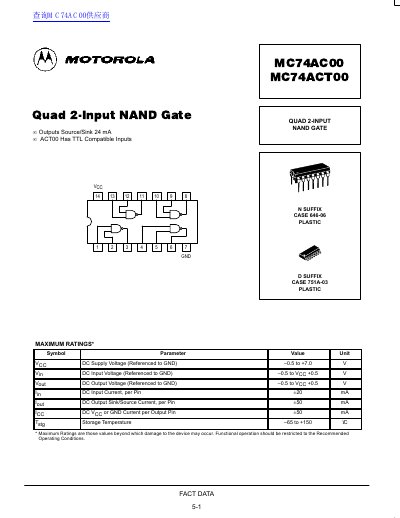

This document describes the characteristics of MC74AC00 and MC74ACT00, two quad 2-input NAND gates. They have TTL compatible inputs and can output a current of 24mA. The maximum ratings include VCC from -0.5V to +7V, input/output voltage from -0.5V to VCC+0.5V, maximum input current of ±20mA, and maximum output sink/source current of ±50mA.

File format: PDF

Size: -

MD5 Checksum: 85DC81762861B6DD57EC8E318CF95629

Publication date: 10 July, 2012

Downloads: -

PDF Link: MOTOROLA MC74AC00/MC74ACT00 handbook PDF
