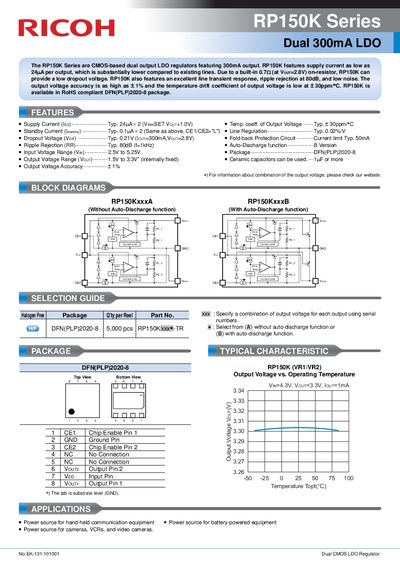

RICOH RP150K SERIES Guide(1)

Update: 30 September, 2023

The RP150K series are CMOS-based dual output LDO regulators featuring 300mA output. RP150K features supply current as low as 24μA per output, which is substantially lower compared to existing lines. Due to a built-in 0.7Ω (at VOUT=2.8V) on-resistor, RP150K can provide a low dropout voltage. RP150K also features an excellent line transient response, ripple rejection at 80dB, and low noise. The output voltage accuracy is as high as ± 1% and the temperature drift coefficient of output voltage is low at ± 30ppm/°C. RP150K is available in RoHS compliant DFN(PLP)2020-8 package.

Brand: RICOH

File format: PDF

Size: 190 KB

MD5 Checksum: DBDDAC47B187AA812CD907716AE4595A

Publication date: 09 July, 2012

Downloads: -

PDF Link: RICOH RP150K SERIES Guide(1) PDF

Download
