Update: 30 September, 2023
The ADC08060 is a low-power, 8-bit, monolithic analog-to-digital converter with an on-chip track-and-hold circuit. This product is optimized for low cost, low power, small size and ease of use, and operates at conversion rates of 20 MSPS to 70 MSPS with outstanding dynamic performance over its full operating range while consuming just 1.3 mW per MHz of clock frequency. That’s just 78 mW of power at 60 MSPS. Raising the PD pin puts the ADC08060 into a Power Down mode where it consumes just 1 mW. The unique architecture achieves 7.5 Effective Bits with 25 MHz input frequency. The excellent DC and AC charac- teristics of this device, together with its low power consump- tion and single +3V supply operation, make it ideally suited for many imaging and communications applications, includ- ing use in portable equipment. Furthermore, the ADC08060 is resistant to latch-up and the outputs are short-circuit proof. The top and bottom of the ADC08060’s reference ladder are available for connections, enabling a wide range of input possibilities. The digital outputs are TTL/CMOS compatible with a separate output power supply pin to support interfac- ing with 3V or 2.5V logic. The digital inputs (CLK and PD) are TTL/CMOS compatible. The ADC08060 is offered in a 24-lead plastic package (TSSOP) and is specified over the industrial temperature range of −40˚C to +85˚C.
File format: PDF
Size: -
MD5 Checksum: 33D75B26E5BFE9C410117FDEDF5152C7
Publication date: 04 July, 2012
Downloads: -

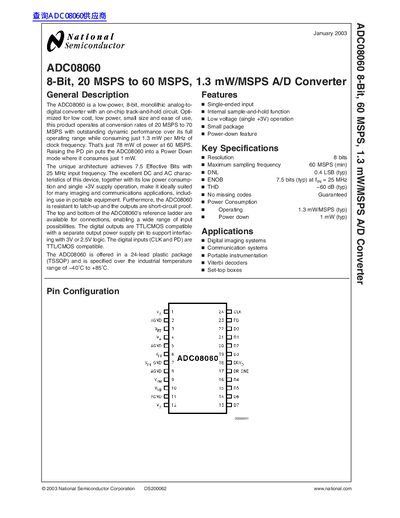

PDF Link: National semiconductor ADC08060 8-Bit 20 MSPS to 60 MSPS 1.3 mW/MSPS A/D Converter handbook PDF
