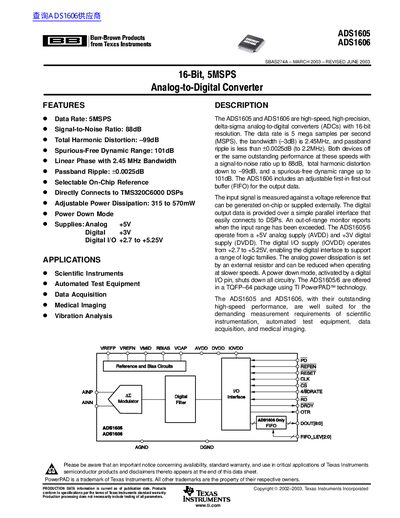

The ADS1605 and ADS1606 are high-speed, high-precision, 16-bit delta-sigma analog-to-digital converters (ADCs) with a data rate of 5MSPS, a signal-to-noise ratio of 88dB, total harmonic distortion down to -99dB, and a spurious-free dynamic range up to 101dB. These devices offer the same outstanding performance at these speeds with a bandwidth (-3dB) of 2.45MHz and passband ripple of less than ±0.0025dB (up to 2.2MHz). The ADS1606 includes an adjustable first-in-first-out buffer (FIFO) for output data. The input signal is measured against a voltage reference that can be generated on-chip or supplied externally. The digital output data is provided over a simple parallel interface that easily connects to DSPs. An out-of-range monitor reports when the input range has been exceeded. The ADS1605/6 operate from a +5V supply.
