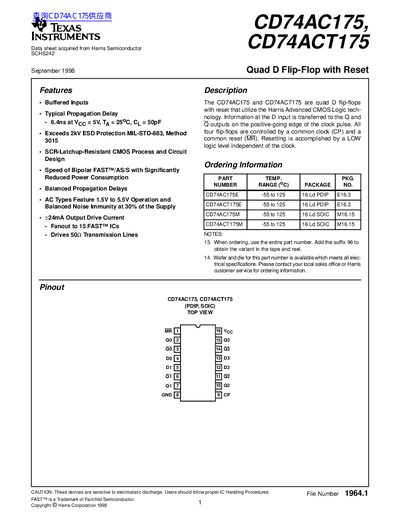

TEXAS INSTRUMENTS CD74AC175 CD74ACT175 Quad D Flip-Flop with Reset handbook

Update: 30 September, 2023

CD74AC175 and CD74ACT175 are quad D flip-flops with reset that utilize the Harris Advanced CMOS Logic tech- nology. Information at the D input is transferred to the Q and Q outputs on the positive-going edge of the clock pulse. All four flip-flops are controlled by a common clock (CP) and a common reset (MR). Resetting is accomplished by a LOW logic level independent of the clock.

---
