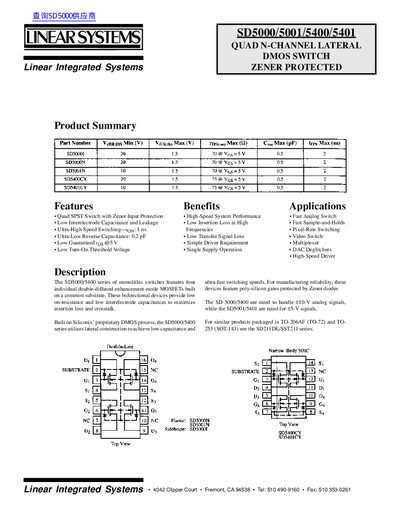

LINEAR SYSTEMS SD5000/5001/5400/5401 QUAD N-CHANNEL LATERAL DMOS SWITCH ZENER PROTECTED

Update: 30 September, 2023

The SD5000/5400 series of monolithic switches features four individual double-diffused enhancement-mode MOSFETs built on a common substrate. These bidirectional devices provide low on-resistance and low interelectrode capacitances to minimize insertion loss and crosstalk. Built on Siliconix’ proprietary DMOS process, the SD5000/5400 series utilizes lateral construction to achieve low capacitance and ultra-fast switching speeds. For manufacturing reliability, these devices feature poly-silicon gates protected by Zener diodes.

Brand: LINEAR

File format: PDF

Size: 500 KB

MD5 Checksum: C92E54AB1B510BAF72B2C6CF2CE4A189

Publication date: 12 June, 2012

Downloads: -

PDF Link: LINEAR SYSTEMS SD5000/5001/5400/5401 QUAD N-CHANNEL LATERAL DMOS SWITCH ZENER PROTECTED PDF
