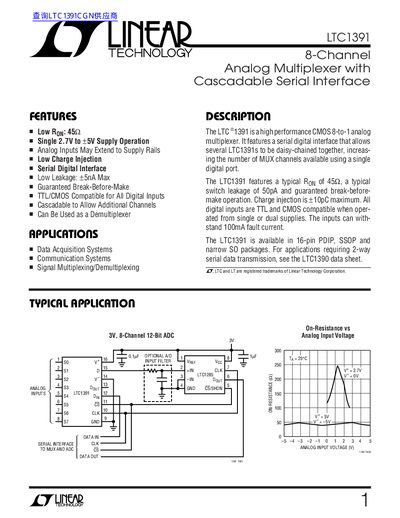

LINEAR LTC1391 Data Sheet

Update: 30 September, 2023

The LTC1391 is a high performance CMOS 8-to-1 analog multiplexer. It features a serial digital interface that allows several LTC1391s to be daisy-chained together, increasing the number of MUX channels available using a single digital port. The LTC1391 features a typical RON of 45Ω, a typical switch leakage of 50pA and guaranteed break-before-make operation. Charge injection is ±10pC maximum. All digital inputs are TTL and CMOS compatible when operated from single or dual supplies. The inputs can withstand 100mA fault current. The LTC1391 is available in 16-pin PDIP, SSOP and narrow SO packages. For applications requiring 2-way serial data transmission, see the LTC1390 data sheet.

Brand: LINEAR

File format: PDF

Size: 162 KB

MD5 Checksum: CF85E73FDADFD31D4561F854D93BC953

Publication date: 12 June, 2012

Downloads: -

PDF Link: LINEAR LTC1391 Data Sheet PDF

Download
