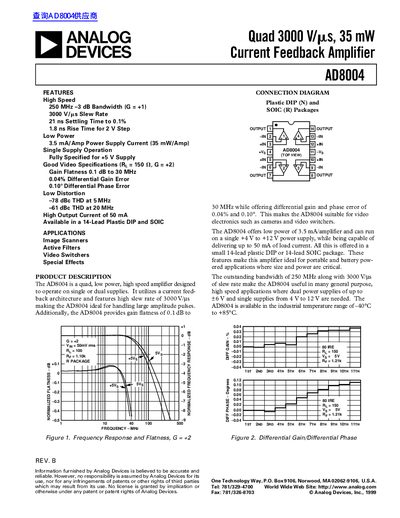

ANALOG DEVICES AD8004 handbook (1)

Update: 30 September, 2023

The AD8004 is a quad, low power, high speed amplifier designed to operate on single or dual supplies. It utilizes a current feed- back architecture and features high slew rate of 3000 V/µs making the AD8004 ideal for handling large amplitude pulses. Additionally, the AD8004 provides gain flatness of 0.1 dB to 30 MHz, 0.04% differential gain error and 0.10° differential phase error. The AD8004 provides high output current of 50 mA and is available in a 14-lead plastic DIP and SOIC package.

---

File format: PDF

Size: -

MD5 Checksum: 19C7008F72F6AF132CACDA7D7489063D

Publication date: 08 June, 2012

Downloads: -

PDF Link: ANALOG DEVICES AD8004 handbook (1) PDF
