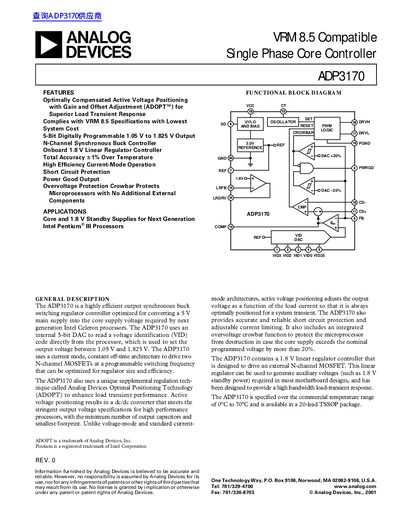

ANALOG DEVICES ADP3170 VRM 8.5 Compatible Single Phase Core Controller handbook

Update: 30 September, 2023

ADP3170 is a highly efficient output, VRM 8.5 compliant single phase core controller. It features 5-bit digitally programmable 1.05V to 1.825V output, N-channel synchronous buck controller and onboard 1.8V linear regulator controller. ADP3170 features total accuracy <1% (over temperature), high efficiency current-mode operation, short circuit protection, power good output overvoltage protection and crowbar protection microprocessors with no additional external components.

---

File format: PDF

Size: -

MD5 Checksum: 94E443B7BF3934F59C6B2E0BAE2A6064

Publication date: 08 June, 2012

Downloads: -

PDF Link: ANALOG DEVICES ADP3170 VRM 8.5 Compatible Single Phase Core Controller handbook PDF
