ANALOG DEVICES Evaluation Board For PLL Frequency Synthesizer EVAL-ADF4213EB1 Manual

Update: 30 September, 2023

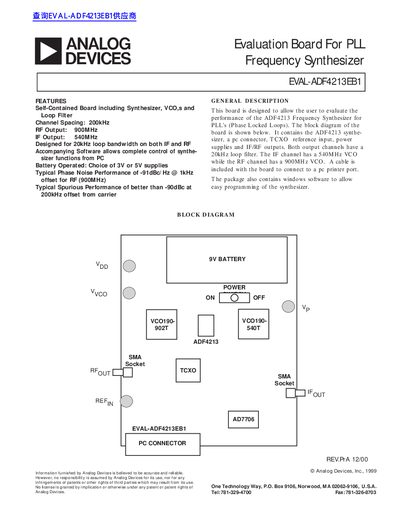

EVAL-ADF4213EB1 is an evaluation board from Analog Devices, Inc. that is used to evaluate the performance of the ADF4213 frequency synthesizer. The board contains the ADF4213 synthesizer, a PC connector, TCXO reference input, power supplies and IF/RF outputs. Both output channels have a 20kHz loop filter. The IF channel has a 540MHz VCO while the RF channel has a 900MHz VCO.

---
