This is a document about the eval-adf4113eb2 product. The product is a self-contained board that includes a synthesizer, vco, loop filter, and is designed to generate frequencies from 1700mhz to 1800mhz. The product is designed for a 20khz loop bandwidth, and the accompanying software allows complete control of the synthesizer functions from a pc. The product is battery-powered and can be powered by either a 3v or 5v supply. The product has a typical phase noise performance of -86dbc/hz@1khz offset.
File format: PDF
Size: -
MD5 Checksum: A9D0B63965A5052F58DE2CBD24DBF833
Publication date: 08 June, 2012
Downloads: -

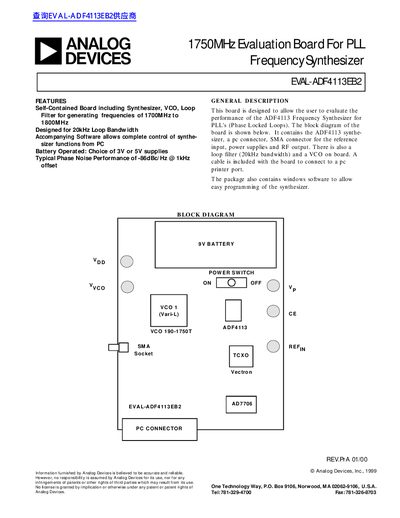

PDF Link: ANALOG DEVICES 1750MHz Evaluation Board For PLL Frequency Synthesizer EVAL-ADF4113EB2 Manual PDF
