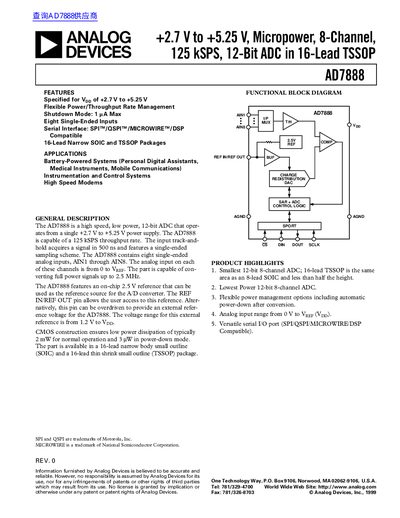

ANALOG DEVICES AD7888 +2.7 V to +5.25 V Micropower 8-Channel 125 kSPS 12-Bit ADC in 16-Lead TSSOP handbook

Update: 30 September, 2023

The AD7888 is a high speed, low power, 12-bit ADC that operates from a single +2.7 V to +5.25 V power supply. The AD7888 is capable of a 125 kSPS throughput rate. The input track-and-hold acquires a signal in 500 ns and features a single-ended sampling scheme. The AD7888 contains eight single-ended inputs, and uses a SPI/QSPI/MICROWIRE/DSP compatible serial interface. The AD7888 is suitable for battery-powered systems (personal digital assistants, medical instruments, mobile communications), instrumentation and control systems, high-speed modems, and other applications.

---

File format: PDF

Size: -

MD5 Checksum: 1F3DAF0CC9070E0D19B2E4D9D23CDEDE

Publication date: 08 June, 2012

Downloads: -

PDF Link: ANALOG DEVICES AD7888 +2.7 V to +5.25 V Micropower 8-Channel 125 kSPS 12-Bit ADC in 16-Lead TSSOP handbook PDF
