Update: 30 September, 2023
AD7854/AD7854L is a single-supply 200 kSPS 12-bit sampling ADC produced by Analog Devices. It has read-only operation and system self-calibration function. It also supports low power mode, the power consumption is 15 mW (VDD = 3V). It supports 12-bit parallel and 8-bit parallel interfaces. It is suitable for battery-powered systems, personal digital assistants, medical instruments, mobile communications, pen computers, instrumentation and control systems, high speed modems, etc.
File format: PDF
Size: -
MD5 Checksum: 23DC7E86C3A169D8E5ADDACDA0151FAB
Publication date: 08 June, 2012
Downloads: -

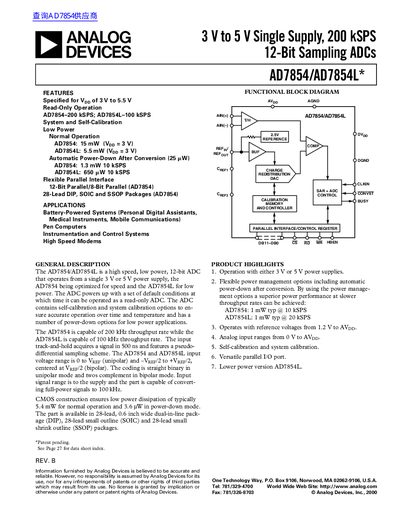

PDF Link: ANALOG DEVICES AD7854/AD7854L* 3 V to 5 V Single Supply 200 kSPS 12-Bit Sampling ADCs handbook PDF
