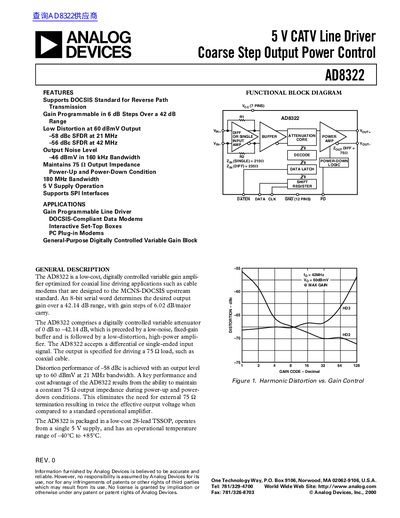

ANALOG DEVICES 5 V CATV Line Driver Coarse Step Output Power Control AD8322 handbook

Update: 30 September, 2023

AD8322 is a low-cost, digitally controlled variable gain amplifier that supports DOCSIS standard for reverse path transmission gain. It can be programmed in 6 dB steps over a 42 dB range via SPI interface. At 60 dBmV output, the distortion is low, –58dBc SFDR@21MHz, –56dBc SFDR@42MHz. The output noise level is –46dBmV with a bandwidth of 180MHz. The supply voltage is 5V.

---

File format: PDF

Size: -

MD5 Checksum: 91885BC933560A700293D5DB837A9614

Publication date: 08 June, 2012

Downloads: -

PDF Link: ANALOG DEVICES 5 V CATV Line Driver Coarse Step Output Power Control AD8322 handbook PDF
