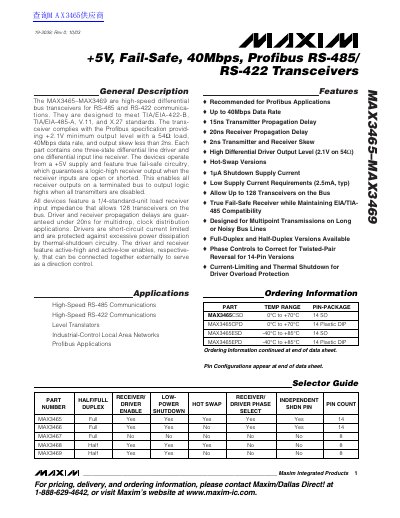

MAXIM MAX3465 MAX3469 handbook
Update: 29 September, 2023
The MAX3465–MAX3469 are high-speed differential bus transceivers for RS-485 and RS-422 communications. They are designed to meet TIA/EIA-422-B, TIA/EIA-485-A, V.11, and X.27 standards. The transceiver complies with the Profibus specification providing +2.1V minimum output level with a 54Ω load, 40Mbps data rate, and output skew less than 2ns. Each part contains one three-state differential line driver and one differential input line receiver. The devices operate from a +5V supply and feature true fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This enables all receiver outputs on a terminated bus to output logic highs when all transmitters are disabled. All devices feature a 1/4-standard-unit load receiver input impedance that allows 128 transceivers on the bus. Driver and receiver propagation delays are guaranteed under 20ns for multidrop, clock distribution applications. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal-shutdown circuitry. The driver and receiver feature active-high and active-low enables, respectively, that can be connected together externally to serve as a direction control. Applications include High-Speed RS-485 Communications, High-Speed RS-422 Communications, Level Translators, Industrial-Control Local Area Networks, and Profibus Applications.
Brand: MAXIM
File format: PDF
Size: 306 KB
MD5 Checksum: 80C7603EC950ABE905ECC74010396ABB
Publication date: 07 June, 2012
Downloads: -
PDF Link: MAXIM MAX3465 MAX3469 handbook PDF
