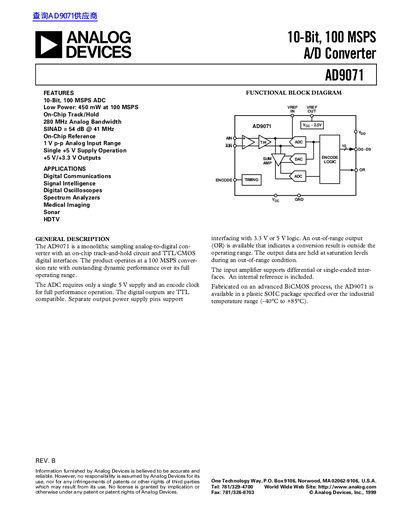

ANALOG DEVICES 10-Bit 100 MSPS A/D Converter AD9071 handbook

Update: 30 September, 2023

The AD9071 is a monolithic sampling analog-to-digital converter with an on-chip track-and-hold circuit and TTL/CMOS digital interfaces. The product operates at a 100 MSPS conversion rate with outstanding dynamic performance over its full operating range. The ADC requires only a single 5 V supply and an encode clock for full performance operation. The digital outputs are TTL compatible. Separate output power supplies are not required.

---

File format: PDF

Size: -

MD5 Checksum: D843FA7C753CB8FD6EF17A058D5D085D

Publication date: 07 June, 2012

Downloads: -

PDF Link: ANALOG DEVICES 10-Bit 100 MSPS A/D Converter AD9071 handbook PDF
