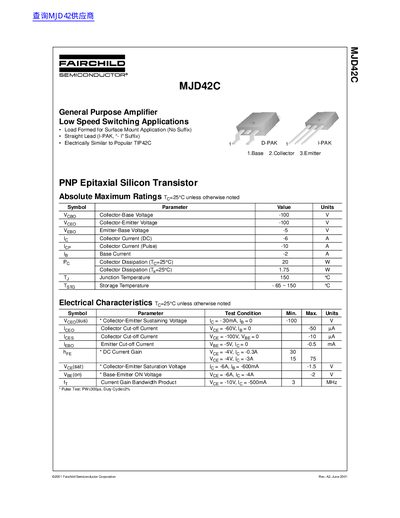

FAIRCHILD MJD42C Data Sheet

Update: 30 September, 2023

MJD42C is a PNP type silicon transistor produced by Fairchild Semiconductor Corporation. The maximum collector-base voltage is -100V, the maximum collector-emitter voltage is -100V, the maximum emitter-base voltage is -5V, the maximum collector current is -6A, the maximum base current is -2A, and the maximum collector power consumption is 20W. The maximum junction temperature is 150℃ and the storage temperature is -65~150℃. MJD42C is suitable for general-purpose amplifiers and low-speed switching applications.

---

File format: PDF

Size: -

MD5 Checksum: EDDE5A58E6EF0923F9D8D3149F455885

Publication date: 06 June, 2012

Downloads: -

PDF Link: FAIRCHILD MJD42C Data Sheet PDF
