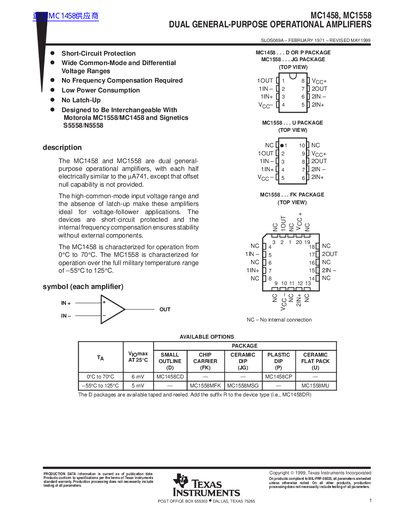

TEXAS INSTRUMENTS MC1458 MC1558 DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIERS

Update: 29 September, 2023

The MC1458 and MC1558 are dual general-purpose operational amplifiers, with each half electrically similar to the µA741, except that offset null capability is not provided. The high-common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The devices are short-circuit protected and the internal frequency compensation ensures stability without external components. The MC1458 is characterized for operation from 0°C to 70°C. The MC1558 is characterized for operation over the full military temperature range of –55°C to 125°C.

Brand: TEXAS

File format: PDF

Size: 81 KB

MD5 Checksum: 659C5DF0FB1C37FE79D273069E32C5B3

Publication date: 06 June, 2012

Downloads: -

PDF Link: TEXAS INSTRUMENTS MC1458 MC1558 DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIERS PDF

Download
