LINEAR LT3029 Manual

Update: 01 October, 2023

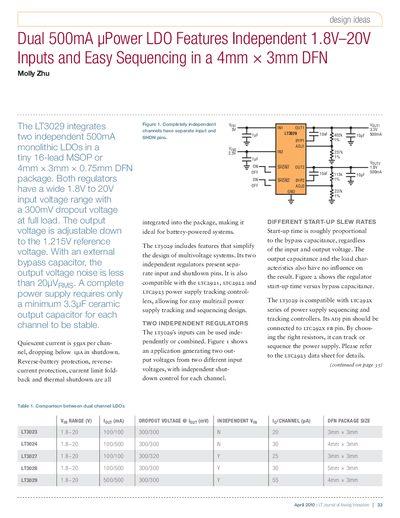

This document introduces the features and characteristics of the LT3029 product. The LT3029 is a monolithic LDO that integrates two independent 500mA regulators. It has a wide input voltage range of 1.8V to 20V and a dropout voltage of 300mV at full load. The output voltage can be adjusted to 1.215V reference voltage. With an external bypass capacitor, the output voltage noise is less than 20µVRMS. Each channel requires a minimum of 3.3µF ceramic output capacitor to be stable. The quiescent current is 55µA per channel and drops below 1µA in shutdown. Reverse-battery protection, reverse-current protection, current limit fold-back and thermal shutdown are all integrated into the package, making it ideal for battery-powered systems.

Brand: LINEAR

File format: PDF

Size: 305 KB

MD5 Checksum: B392471D32C9BB357550C1D8E2A00A3C

Publication date: 05 June, 2012
