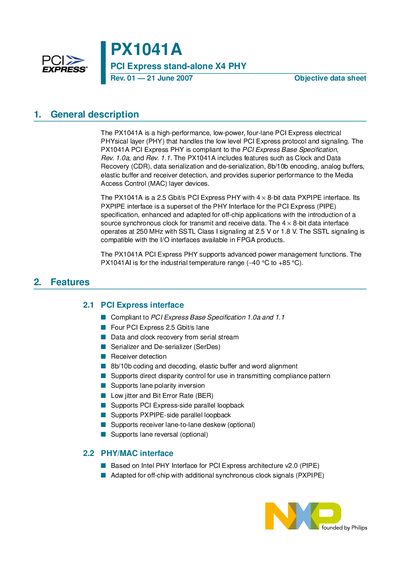

NXP PX1041A Datasheet

Update: 30 September, 2023

PX1041A is a high-performance, low-power, four-lane PCI Express electrical PHY that handles the low level PCI Express protocol and signaling. PX1041A PCI Express PHY is compliant to PCI Express Base Specification, Rev. 1.0a, and Rev. 1.1. PX1041A includes features such as Clock and Data Recovery (CDR), data serialization and de-serialization, 8b/10b encoding, analog buffers, elastic buffer and receiver detection, and provides superior performance to the Media Access Control (MAC) layer devices. PX1041A is a 2.5 Gbit/s PCI Express PHY with 4 × 8-bit data PXPIPE interface. Its PXPIPE interface is a superset of the PHY Interface for the PCI Express (PIPE) specification, enhanced and adapted for off-chip applications with the introduction of a source synchronous clock for transmit and receive data. The 4 × 8-bit data interface operates at 250 MHz with SSTL Class I signaling at 2.5 V or 1.8 V. The SSTL signaling is compatible with the I/O interfaces available in FPGA products. PX1041A PCI Express PHY supports advanced power management functions. PX1041AI is for the industrial temperature range (−40 °C to +85 °C).

---

Brand: NXP

File format: PDF

Size: 163 KB

MD5 Checksum: 8ED8C9084805957A4C631794E58A663A

Publication date: 05 June, 2012

Downloads: -

PDF Link: NXP PX1041A Datasheet PDF
