The LMV7219 is a low-power, high-speed comparator with internal hysteresis. The LMV7219 operating voltage ranges from 2.7V to 5V with push/pull rail-to-rail output. This device achieves a 7ns propagation delay while consuming only 1.1mA of supply current at 5V. The LMV7219 inputs have a common mode voltage range that extends 200mV below ground, allowing ground sensing. The internal hysteresis ensures clean output transitions even with slow-moving inputs signals. The LMV7219 is available in the SC70-5 and SOT23-5 pack- ages, which are ideal for systems where small size and low power are critical.
File format: PDF
Size: -
MD5 Checksum: 1EB984DD30EC2E411E9032759B53D2EC
Publication date: 05 June, 2012
Downloads: -

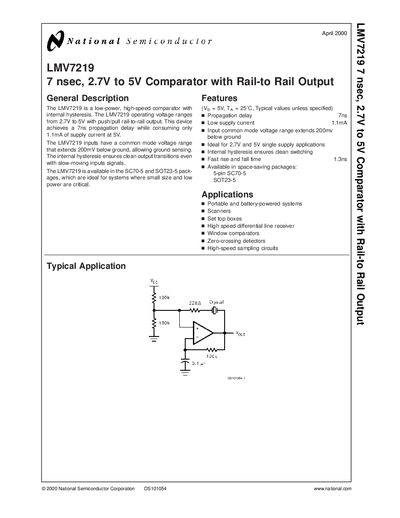

PDF Link: National Semiconductor LMV7219 7 nsec 2.7V to 5V Comparator with Rail-to Rail Output handbook PDF
