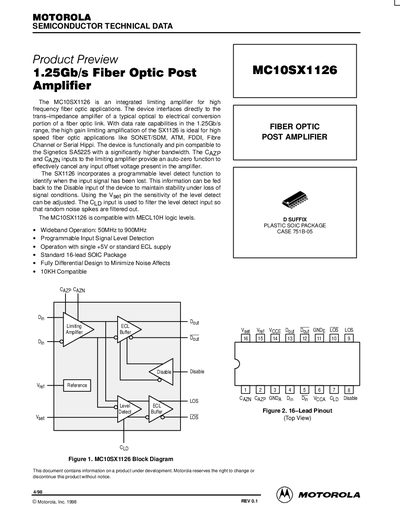

MOTOROLA MC10SX1226 Data Sheet
Update: 30 September, 2023
The MC10SX1126 is an integrated limiting amplifier for high frequency fiber optic applications. The device interfaces directly to the trans-impedance amplifier of a typical optical to electrical conversion portion of a fiber optic link. With data rate capabilities in the 1.25Gb/s range, the high gain limiting amplification of the SX1126 is ideal for high speed fiber optic applications like SONET/SDM, ATM, FDDI, Fibre Channel or Serial Hippi. The device is functionally and pin compatible to the Signetics SA5225 with a significantly higher bandwidth. The CAZP and CAZN inputs to the limiting amplifier provide an auto-zero function to effectively cancel any input offset voltage present in the amplifier. The SX1126 incorporates a programmable level detect function to identify when the input signal has been lost. This information can be fed back to the Disable input of the device to maintain stability under loss of signal conditions. Using the Vset pin the sensitivity of the level detect can be adjusted. The CLD input is used to filter the level detect input so that random noise spikes are filtered out. The MC10SX1126 is compatible with MECL10H logic levels.
Brand: MOTOROLA
File format: PDF
Size: 84 KB
MD5 Checksum: 4A83624C36C8D281D0B2DF6AA5E2C415
Publication date: 05 June, 2012
Downloads: -
PDF Link: MOTOROLA MC10SX1226 Data Sheet PDF
