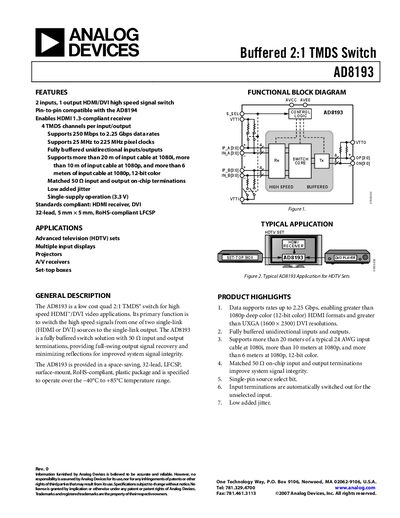

This document describes the features and characteristics of the AD8193 Buffered 2:1 TMDS Switch, including 2 inputs, 1 output HDMI/DVI high-speed signal switch, compatibility with HDMI 1.3 standard, support for 4 TMDS channels, data rates from 250 Mbps to 2.25 Gbps, pixel clocks from 25 MHz to 225 MHz, fully buffered unidirectional inputs/outputs, support for input cables of more than 20 meters at 1080i, more than 10 meters at 1080p, and more than 6 meters at 1080p 12-bit color, matched 50Ω input and output terminations, and single-supply operation at 3.3V. The AD8193 is suitable for applications such as advanced television (HDTV) sets, multiple input displays, projectors, A/V receivers, and set-top boxes.

---
