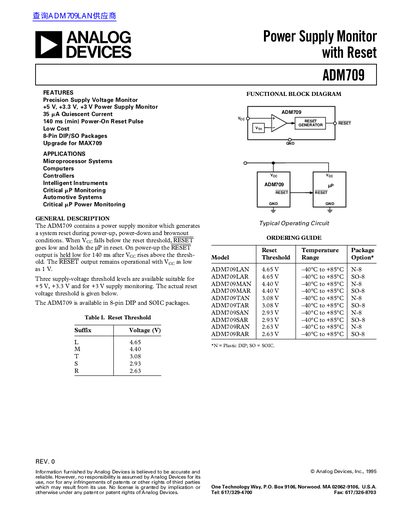

ANALOG DEVICES ADM709 datasheet

Update: 30 September, 2023

The ADM709 is a power supply monitor that generates a system reset during power-up, power-down, and brownout conditions. When VCC falls below the reset threshold, RESET goes low and holds the µP in reset. On power-up the RESET output is held low for 140 ms after VCC rises above the thresh- old. The RESET output remains operational with VCC as low as the reset threshold.

Brand: ANALOG

File format: PDF

Size: 225 KB

MD5 Checksum: 52706A07527BB26DC5F5BECAC0ED9E62

Publication date: 05 June, 2012

Downloads: -

PDF Link: ANALOG DEVICES ADM709 datasheet PDF

Download
