The 74LCX257 is a quad 2-input multiplexer with 5V tolerant inputs and outputs, and 3-STATE outputs. It allows selection of four bits of data from two sources using a Common Data Select input. The selected data is presented in true (non-inverted) form through four outputs. The outputs can be switched to a high impedance state by applying a logic HIGH on the common Output Enable (OE) input, enabling direct interface with bus-oriented systems. The 74LCX257 is fabricated using advanced CMOS technology to achieve high-speed operation while maintaining low power dissipation.
File format: PDF
Size: -
MD5 Checksum: 3FAF2D16F680FF678ACCA00F7475B927
Publication date: 05 June, 2012
Downloads: -

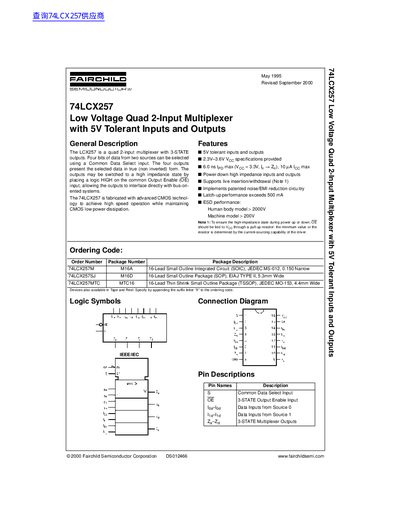

PDF Link: FAIRCHILD 74LCX257 Low Voltage Quad 2-Input Multiplexer handbook PDF
