The LP3990 is a 150mA linear voltage regulator designed for portable, battery-powered systems providing an accurate output voltage, low noise, and low quiescent current. The LP3990 will provide a 0.8V output from the low input voltage of 2V at up to 150mA load current. When switched into shutdown mode via a logic signal at the enable pin, the power consumption is reduced to virtually zero. The LP3990 is designed to be stable with space saving ceramic capacitors as small as 0.47µF. Performance is specified for a -40˚C to 125˚C junction tem- perature range. For output voltages other than 0.8V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, or 3.3V please contact your local NSC sales office.
File format: PDF
Size: -
MD5 Checksum: 7CBB2EDD0D33107E52F633B2837B5692
Publication date: 05 June, 2012
Downloads: -

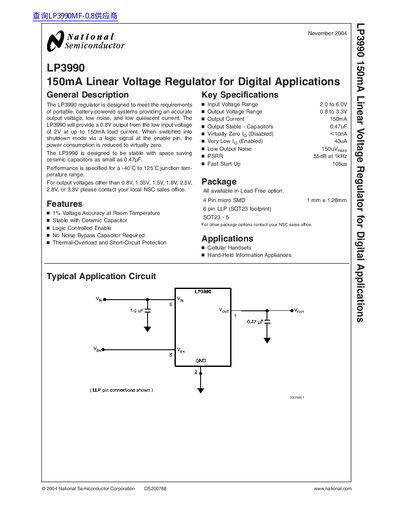

PDF Link: National Semiconductor LP3990 150mA Linear Voltage Regulator for Digital Applications handbook PDF
