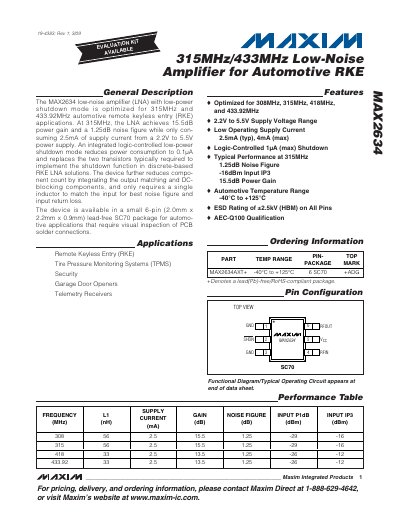

MAXIM MAX2634 handbook

Update: 28 September, 2023

The MAX2634 low-noise amplifier (LNA) is optimized for 315MHz and 433.92MHz automotive remote keyless entry (RKE) applications. At 315MHz, the LNA achieves 15.5dB power gain and a 1.25dB noise figure while only consuming 2.5mA of supply current from a 2.2V to 5.5V power supply. An integrated logic-controlled low-power shutdown mode reduces power consumption to 0.1µA and replaces the two transistors typically required to implement the shutdown function in discrete-based RKE LNA solutions. The device further reduces component count by integrating the output matching and DC-blocking components, and only requires a single inductor to match the input for best noise figure and input return loss. The device is available in a small 6-pin (2.0mm x 2.2mm x 0.9mm) lead-free SC70 package for automotive applications that require visual inspection of PCB solder connections.

---

Brand: MAXIM

File format: PDF

Size: 160 KB

MD5 Checksum: 0AB5FFA81511167A4FD5A8D97D892E8D

Publication date: 07 May, 2012

Downloads: -

PDF Link: MAXIM MAX2634 handbook PDF
