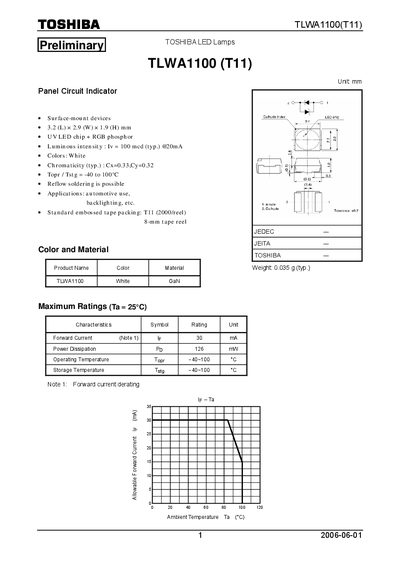

TOSHIBA - TLWA1100(T11) handbook

Update: 30 September, 2023

TLWA1100(T11) is a LED lamp produced by Toshiba. It is a surface mount device with dimensions of 3.2 (L) × 2.9 (W) × 1.9 (H) mm. It uses an UV LED chip plus RGB phosphor, with a luminous intensity of Iv = 100 mcd (typical) @20mA. It is white in color with a color coordinate of Cx=0.33,Cy=0.32. The operating temperature range is -40~100°C. It can be reflow soldered and is suitable for automotive use, backlighting, etc.

Brand: TOSHIBA

File format: PDF

Size: 185 KB

MD5 Checksum: 8ABB77C70CE8F968E620985CEC231FD7

Publication date: 04 May, 2012

Downloads: -

PDF Link: TOSHIBA - TLWA1100(T11) handbook PDF

Download
