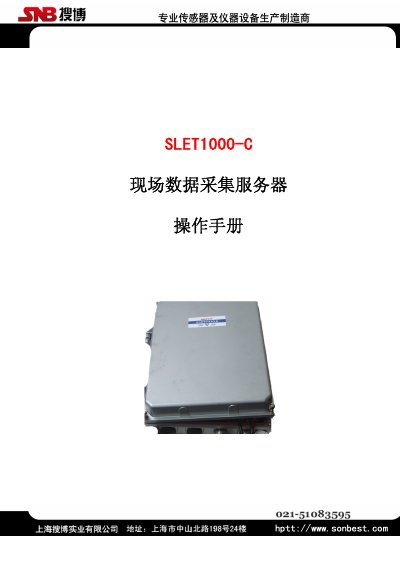

Sonbest SLET1000-C Data Acquisition Server Operation Manual
The SLET1000-C data acquisition server is a core device for online monitoring systems, handling data collection, communication with a host computer, and system status detection. It supports up to 70 nodes, 300 total channels, and offers RS232, CAN, RS485 and fiber‑optic interfaces.
The manual describes the server’s physical dimensions, power requirements (DC 24 V 1 A, 5‑15 W), installation method (wall‑mount with rail brackets), wiring details for power, bus and fiber connections, and includes a parts list and ordering information. This manual is written in Chinese.
SONBest SLET1000-C specifications
| Model | SLET1000-C |
|---|---|
| Display resolution | 0.1 or 0.01 (module dependent) |
| Temperature measurement speed | 4 s per cycle |
| Maximum number of nodes | 70 |
| Maximum node number | 100 |
| Maximum channels per node | 24 |
| Supported total channels | 300 |
| Baud rate | 9600 (customizable) |
| Communication ports | CAN, RS485, RS232, Fiber optic |
| Power supply | DC 24 V 1 A |
| Power consumption | 5‑15 W |
| Weight | 3000 g |
| Storage temperature range | -20 °C to 80 °C |
| Operating temperature range | -40 °C to +85 °C |
| Supported bus length | < 1000 m |
| Dimensions (W×D×H) | 200 mm × 70 mm × 175 mm |
Source: Sonbest SLET1000-C Data Acquisition Server Operation Manual
All SONBest SLET1000-C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What communication interfaces does the SLET1000-C support?
It supports CAN, RS485, RS232 and a fiber‑optic interface for communication with the host computer.
From: Sonbest SLET1000-C Data Acquisition Server Operation Manual
What are the power requirements for the SLET1000-C?
It requires a DC 24 V 1 A power supply and consumes between 5 and 15 W.
From: Sonbest SLET1000-C Data Acquisition Server Operation Manual
How many nodes can the SLET1000‑C connect?
It can connect up to 70 nodes.
From: Sonbest SLET1000-C Data Acquisition Server Operation Manual
What baud rate does the server use for communication?
The default baud rate is 9600, and other rates can be customized.
From: Sonbest SLET1000-C Data Acquisition Server Operation Manual
What communication interfaces does the SLET1000-C support?
It supports CAN, RS485, and RS232 interfaces for connecting to a host PC or other devices.
How many sensor points can the device handle?
The device can handle up to 70 sensor points, with a maximum point number of 100.
