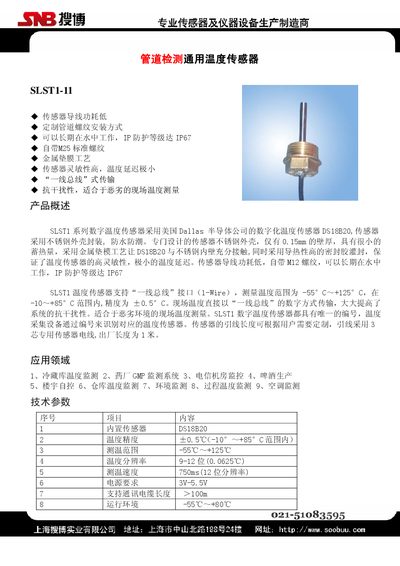

Sonbest SLST1-11 Temperature Sensor User Manual
The SLST1-11 is a pipe‑detection temperature sensor that uses the DS18B20 digital sensor, features a stainless‑steel housing, and is rated IP67 for long‑term underwater operation. It supports a 1‑Wire single‑bus interface and offers high sensitivity with minimal temperature lag.
The manual includes product overview, application areas, technical specifications, physical dimensions, communication protocol, similar model options, pin definitions, and ordering instructions. It also lists the sensor’s accuracy, measurement range, power requirements, and cable length capabilities. This manual is written in Chinese.
SONBest SLST1-11 specifications
| Built‑in sensor | DS18B20 |
|---|---|
| Temperature accuracy | ±0.5°C (-10°C~+85°C range) |
| Measurement range | -55°C to +125°C |
| Resolution | 9‑12 bits (0.0625°C) |
| Measurement speed | 750 ms (12‑bit) |
| Power supply | 3 V‑5.5 V |
| Supported cable length | >100 m |
| Operating environment | -55°C to +80°C |
| Material | 314 stainless steel |
| Outer diameter | φ6 mm |
All SONBest SLST1-11 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the temperature measurement range of the SLST1-11 sensor?
It can measure temperatures from -55 °C up to +125 °C.
How long can the communication cable be for the SLST1-11?
The sensor supports cable lengths greater than 100 meters.
What temperature range does the SLST1-11 sensor measure?
It measures from –55 °C to +125 °C.
What supply voltage is required for the sensor?
The sensor operates on 3 V to 5.5 V.
