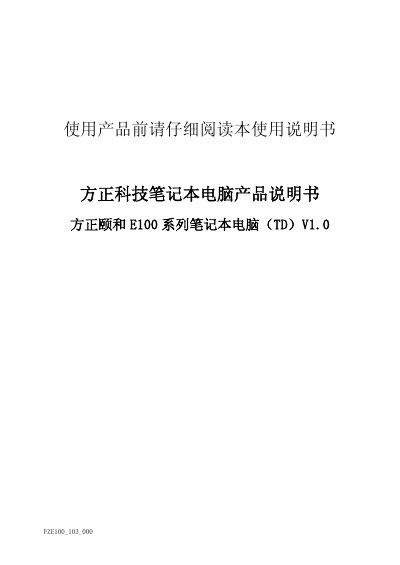

Founder E100 Series (TD) Laptop User Manual
This manual introduces the Founder E100 Series (TD) notebook, covering safety precautions, product overview, and basic usage. It explains how to start the computer, interpret status indicators, and use the keyboard, touchpad, display, storage, network, and audio functions.
Further sections detail BIOS settings, driver installation, and common fault analysis such as sound, hard‑disk, display, memory, and 3G module issues. Appendices list full product specifications and regulatory information. This manual is written in Chinese.
FOUNDER E100 specifications
| CPU | Intel ATOM N270 1.6 GHz |
|---|---|
| Chipset | Intel 945GSE+ICH7-M |
| BIOS | AMI BIOS |
| Memory | Up to 2 GB DDR2 (533/667/800) via one SO‑DIMM slot |
| Display | 10‑inch LED backlight, 1024 × 600 resolution |
| Graphics | Intel GM A950 integrated graphics |
| Keyboard | 82‑key keyboard |
| Touchpad | Two‑button touchpad |
| Hard Drive | 2.5‑inch, 9.5 mm height, SATA interface |
| Audio Ports | Microphone jack and headphone output |
| I/O Ports | 1 mic, 1 headphone, 3 USB‑2.0, 1 external display, 1 RJ‑45, 1 card reader, 1 DC‑IN |
All FOUNDER E100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Why is there no sound on the laptop?
Check the speaker icon in the task bar, ensure the volume is not muted, and try the Fn+F10 (mute) or Fn+F11 (volume) keys. If the problem persists, verify the audio settings in the operating system.
What steps should I take if the hard‑disk is not recognized?
Make sure the hard‑disk connector is securely seated, reseat the drive, and restart the computer. If the drive is new, partition and format it, and reinstall the OS and drivers. Also check the hard‑disk activity LED for operation.
How long should the new battery be charged for the first time?
The new battery should be fully discharged first, then charged for more than 15 hours on external power.
What should I do if there is no sound on the laptop?
Check the speaker icon in the task bar, ensure the volume is not muted, and verify the Fn+F10/F11 keys for mute or volume settings.
Can I use a non‑original power adapter with the laptop?
No. Using a non‑original adapter may cause damage to the computer.
