WIZnet W5500 Datasheet
The W5500 is a full‑hardware TCP/IP embedded Ethernet controller that integrates a MAC, PHY, and a complete TCP/IP stack, enabling simple network connectivity for embedded systems. It supports up to eight independent hardware sockets and offers a high‑speed SPI interface.
Key features include an internal 32 KB buffer, support for TCP, UDP, ICMP, IPv4, ARP, IGMP and PPPoE, power‑down and Wake‑on‑LAN modes, and a 3.3 V core with 5 V‑tolerant I/O. The datasheet covers pin assignments, host interface details, register maps, electrical specifications, and package information. This manual is written in Chinese.
Covers: Pin Assignment · Host Interface · Register and Memory Organization · Register Descriptions · Electrical Specifications · Package Description

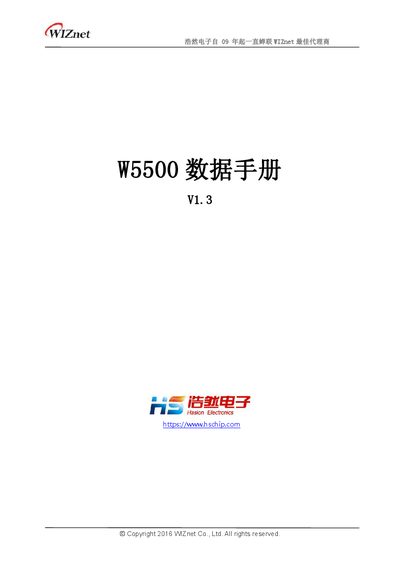

WIZnet W5500 Ethernet Controller Datasheet
The W5500 Ethernet controller integrates a complete TCP/IP stack, supporting protocols such as TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE. It provides eight independent hardware sockets, a 32 KB on‑chip buffer, and operates at 3.3 V with 5 V‑tolerant I/O. The device connects to a host MCU via an SPI interface that can run up to 80 MHz.
This datasheet details the pin assignment, host interface specifications, register map, memory organization, electrical characteristics, and package dimensions of the W5500. It also includes information on power consumption, clock requirements, and mechanical drawing of the LQFP48 package. This manual is written in Chinese.
Covers: Pin Assignment · Host Interface · Register and Memory Organization · Register Descriptions · Electrical Specifications · Package Description
Latest WIZnet manuals
WIZnet W5500 Datasheet
Datasheet 74 pages · 1.8 MB · ZHThe WIZnet W5500 datasheet provides detailed specifications, pin assignments, registers, and electrical characteristics of the full‑hardware TCP/IP Ethernet…
WIZnet W5500 Ethernet Controller Datasheet
Datasheet 74 pages · 2.8 MB · ZHThe WIZnet W5500 is a full‑hardware TCP/IP Ethernet controller with integrated MAC/PHY, 8 sockets and a high‑speed SPI interface.
WIZnet WIZ610wi user manual
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in WIZnet manuals
How many hardware sockets does the W5500 support?
It supports eight independent hardware sockets for simultaneous communication.
From: WIZnet W5500 Datasheet
What is the maximum SPI clock frequency for the W5500?
The SPI interface can operate at up to 80 MHz.
From: WIZnet W5500 Datasheet
How many hardware sockets does the W5500 support?
The W5500 supports eight independent hardware sockets.
Does the W5500 support automatic MDIX (auto‑crossover)?
No, the W5500 does not support automatic polarity reversal; a straight‑through cable must be used for connections to switches or routers.
