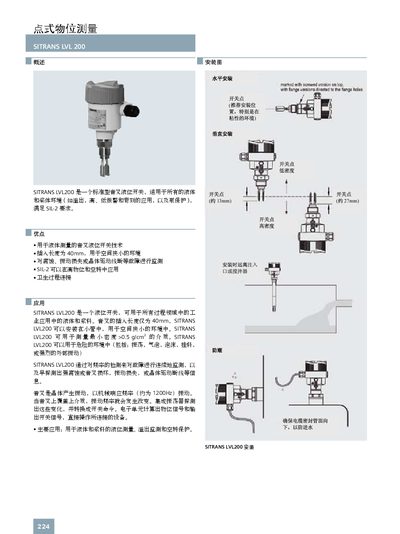

SITRANS LVL200 Point Type Level Measurement Manual
The SITRANS LVL200 is a compact point‑type level switch designed for liquid and slurry applications in harsh environments, meeting SIL2 requirements. It detects level by monitoring the frequency change of a vibrating crystal when the sensor is covered by the process medium.
The manual covers advantages, application fields, installation guidelines, electrical and process connections, certification information, and detailed technical specifications such as switching delay, operating frequency, voltage ratings, temperature range, and material construction. This manual is written in Chinese.
SITRANS LVL200 specifications
| Switching delay | ≈ 500 ms (on/off) |
|---|---|
| Operating frequency | ≈ 1200 Hz |
| Operating temperature | -40 °C to 705 °C |
| Density range | 0.7 – 2.5 g/cm³ |
| Pressure (tube) | -1 – 64 barg |
| Housing material | Cast aluminum, polyester coating |
All SITRANS LVL200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the switching delay of the LVL200?
The switching delay is approximately 500 ms for both on and off states.
What frequency does the LVL200 operate at?
The device operates at an approximate frequency of 1200 Hz.
