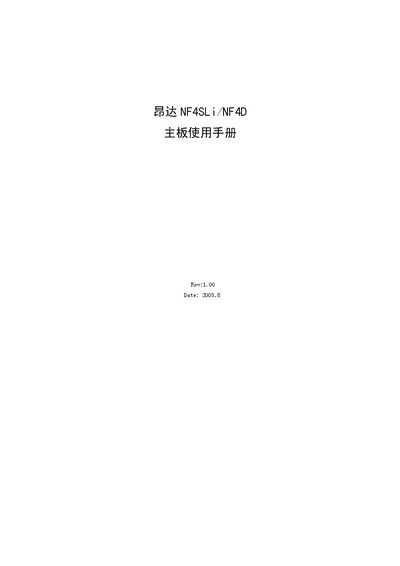

ONDA NF4SLi/NF40 motherboard Manual
This manual covers everything you need to set up the Onda NF4SLI/NF4D motherboard, from checking the packaging contents to configuring the BIOS and installing drivers. It also includes detailed diagrams of the board layout and instructions for connecting peripherals such as USB, LAN, and audio devices.
Additional sections explain the SLI mode jumper settings, sound system configuration, and troubleshooting tips. The document ends with contact information for Onda support and a glossary of technical abbreviations. This manual is written in Chinese.
ONDA NF4S specifications
| Chipset | NVIDIA nForce4 SLI (optional nForce4) |
|---|---|
| CPU Support | AMD Socket 939 Athlon 64FX / Athlon 64 X2 / Athlon 64 |
| Memory Slots | 4 x 184‑pin DDR DIMM, up to 4 GB total |
| Memory Types | Non‑ECC DDR 400/333/266/200 SDRAM |
| SATA Interfaces | Integrated 150 MB/s SATA, optional 300 MB/s SATA |
| PCI Express Slots | 2 x PCIe x16, 2 x PCIe x1 |
| PCI Slots | 2 x PCI 2.2 compatible |
| USB Ports | 8 ports, USB 2.0 compatible |
| LAN Interface | 10/100/1000 M Ethernet |
| Audio | 8‑channel AC’97, compatible with AC’97 2.1 |
All ONDA NF4S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which CPUs are supported by the NF4SLI/NF4D motherboard?
It supports AMD Socket 939 processors including Athlon 64FX, Athlon 64 X2 and Athlon 64.
What is the maximum memory capacity of the board?
The board can hold up to 4 GB of DDR memory across its four DIMM slots.
How many USB ports does the NF4S motherboard have?
It provides 8 USB ports, supporting USB 2.0 and compatible with USB 1.1.
What type of audio codec is integrated on the NF4S motherboard?
The board includes an optional six‑ or eight‑channel AC’97 audio codec.
