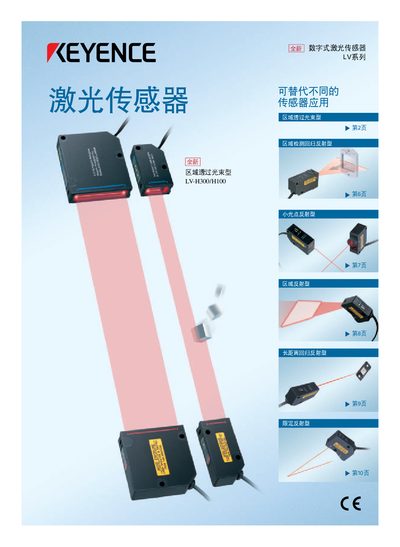

KEYENCE LV-H300/H100 Digital Laser Sensor Manual
The LV-H300/H100 series offers multiple detection types, including area through‑beam, small‑spot reflection, area reflection, long‑range regression reflection, and limited‑reflection modes. The sensors provide a visible red laser beam, adjustable beam position, and a compact optical system that is only a quarter of the size of previous models.
The document covers installation using dedicated brackets and rivet nuts, adjustment of the beam in vertical and horizontal directions, and detailed specifications such as detection distance, beam width, and response time. Various application examples, such as detecting wire‑pole sag, small parts, and installation errors, are also included. This manual is written in Chinese.
KEYENCE H100 specifications
| Maximum detection distance (standard) | 2000 mm |
|---|---|
| Beam width options | 10 mm / 30 mm |
| Maximum detection distance (high‑power mode) | 1000 mm |
| Laser spot diameter (adjustable) | 0.8 mm (up to 300 mm distance) |
| Laser spot diameter (LV‑H37 model) | 50 µm |
| Response time (FINE mode) | 80 µs |
| Resolution (SUPER mode) | 16 bit |
