Key facts
- Brand
- IDEC
- Model
- FL1E
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-16
Start here

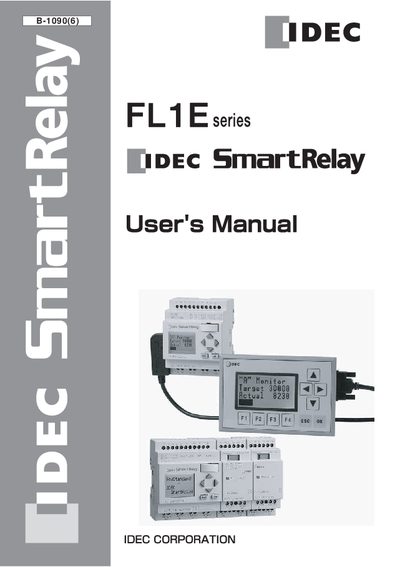

IDEC FL1E SmartRelay Owner's Manual
This manual covers the IDEC SmartRelay FL1E series, describing safety alerts, qualified personnel requirements, and the scope of the document. It includes a preface, revision history, and detailed sections on installation, wiring, and programming.
The guide is organized into eight chapters, covering getting started, installation and wiring, programming, functions, configuration, memory and battery cartridges, software, and application examples. Technical data, environmental ratings, and index references are provided for quick lookup.
IDEC FL1E specifications
| IP rating (base module front panel) | IP20 |
|---|---|
| IP rating (Text Display front panel) | IP65 / UL type 4x / 12 |
| Maximum number of program blocks | 200 |
All IDEC FL1E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many program blocks can be stored in the IDEC SmartRelay?
The device can store up to 200 program blocks.
What does the "Danger" safety symbol indicate?
It indicates that death or severe personal injury will result if proper precautions are not taken.
How many digital inputs does the FL1E module provide?
The FL1E module provides eight digital inputs.
What is the typical startup time for the FL1E SmartRelay?
The typical startup time at power‑up is 9 seconds.
