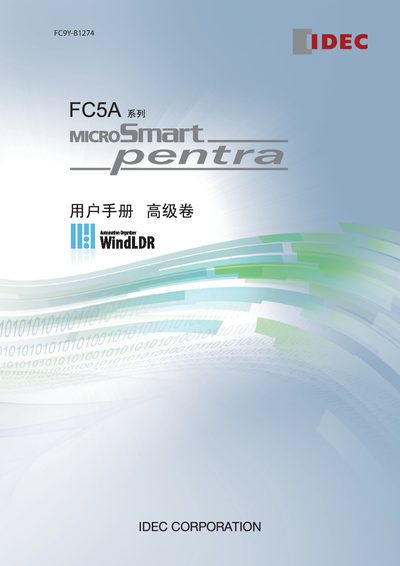

IDEC FC5A User Manual
This manual describes the FC5A series programmable logic controller, including its CPU modules (e.g., FC5A-D16RK1, FC5A-D32K3), HMI interface, and various communication options. It covers installation, configuration, and programming basics, as well as safety and maintenance information.
Key features covered are the supported communication protocols (RS232C, RS485, Modbus TCP, Modbus ASCII/RTU), power requirements, LED indicators, and wiring diagrams. The document also lists the available CPU and I/O modules and provides reference tables for instruction sets and parameter settings.
IDEC FC5A specifications
| Operating Voltage | 12V DC |
|---|---|
| RS232C Interface | Supported |
| RS485 Interface | Supported |
| Modbus TCP | Supported |
| Modbus ASCII/RTU | Supported |
| Run LED | Indicates run status |
| HMI Interface | Available |
| CPU Model Example | FC5A-D16RK1 |
Source: IDEC FC5A User Manual
All IDEC FC5A documents by type
Instruction set, parameters and examples for configuring or programming the device.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- IDEC FC5A User Manual 340 p
Questions answered in these manuals
What is the operating voltage for the FC5A CPU?
The CPU operates on a 12 V DC power supply.
From: IDEC FC5A User Manual
Which LED indicates the run status of the controller?
The RUN LED shows the controller’s run status.
From: IDEC FC5A User Manual
What voltage does the FC5A require for operation?
The FC5A operates from a 12 V DC power supply.
How can I configure Modbus communication on the FC5A?
Modbus settings are described in the Modbus Communication section, including ASCII/RTU mode and parameter tables.
