Start here

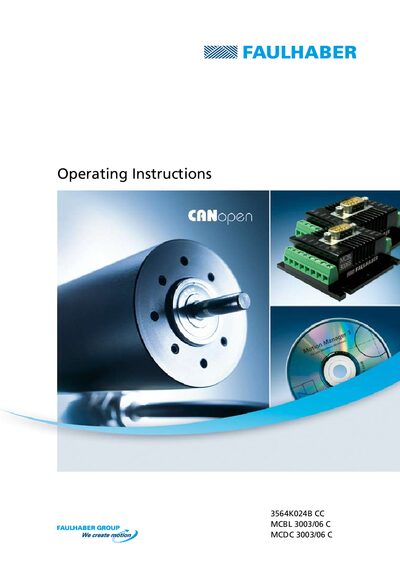

Faulhaber 3564K024B CC, MCBL 3003/06 C, MCDC 3003/06 C Motion Controller Operating Instructions
This manual describes the functionality, installation, wiring, and operation of three Faulhaber motion controllers: the integrated 3564K024B CC unit and the external MCBL 3003/06 C and MCDC 3003/06 C controllers. It includes a general description, quick‑start procedures, detailed connection diagrams, CANopen configuration, parameter settings, and functional modes such as position, velocity, homing, and extended operating modes.
The document also provides guidance on safety, EMC compliance, maintenance, and troubleshooting. It explains how to use the Faulhaber Motion Manager software for CANopen configuration, how to set node IDs and baud rates, and how to activate and control the drives via FAULHABER commands or standard CANopen objects.
All Faulhaber 3564K024B CC, MCBL 3003/06 C, MCDC 3003/06 C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the wiring connections for the 3564K024B CC controller?
Blue – GND, pink – +24 V, brown – Analog input, white – Fault/error output, grey – Analog GND, yellow – CAN‑L, green – CAN‑H, red – CAN‑H (TxD*), plus optional 3rd input for electronics supply.
From: Faulhaber 3564K024B CC, MCBL 3003/06 C, MCDC 3003/06 C Motion Controller Operating Instructions
What is the supply voltage for the controller?
The controller is powered by a +24 V supply together with ground (GND).
From: FAULHABER 3564K024B CC, MCBL3003/06 C, MCDC3003/06 C Motion Controller User Manual
Which communication protocol is supported?
The devices include a CANopen interface for network communication.
From: FAULHABER 3564K024B CC, MCBL3003/06 C, MCDC3003/06 C Motion Controller User Manual
