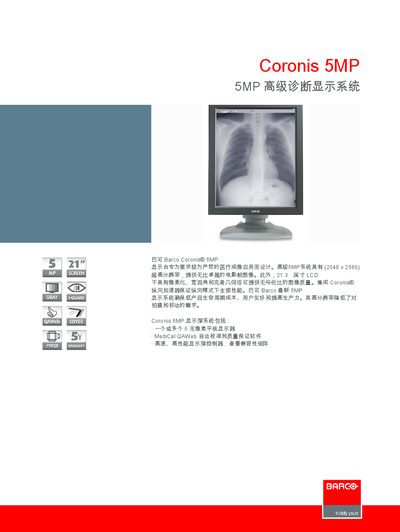

Barco Coronis 5MP User Manual
The Coronis 5MP is a senior‑diagnosis display system designed for demanding medical imaging applications. It offers a 5‑megapixel (2560 × 2048) LCD panel with a 21.3‑inch diagonal, high contrast and wide viewing angles for film‑like image quality.
The manual lists technical specifications such as screen size, brightness, power consumption, connectivity options, dimensions, and certifications, and includes information on the included QAWeb calibration software and warranty. This manual is written in Chinese.
Barco Coronis 5MP specifications
| Active screen size (diagonal) | 541 mm (213.7") |
|---|---|
| Resolution | 2560 × 2048 (5 MP) |
| Pixel pitch | 0.1650 mm |
| Contrast ratio | 800:1 |
| Maximum brightness | 900 cd/m² |
| Power consumption (nominal) | 72 W |
| Weight with base | 13.5 kg |
| Video input | DVI‑D dual‑link |
| USB ports | 1 upstream, 2 downstream (USB 1.1) |
Source: Barco Coronis 5MP User Manual
All Barco Coronis 5MP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the screen resolution of the Barco Coronis 5MP?
The display has a 5 MP resolution of 2560 × 2048 pixels.
How much power does the Coronis 5MP consume?
The nominal power consumption is 72 W.
What is the maximum brightness of the Coronis 5MP display?
The display can reach a maximum brightness of 900 cd/m².
What video input connectors are provided?
The display includes a DVI‑D dual‑link video input.
